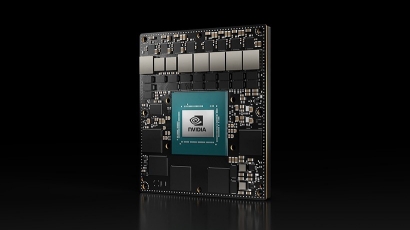

Jetson AGX Orin Series

Jetson AGX Orin modules deliver up to 275 TOPS of AI performance with power configurable between 15W and 60W. This gives you up to 8X the performance of Jetson AGX Xavier in the same compact form factor. Jetson AGX Orin is available in 64GB ,32GB, and Industrial versions.

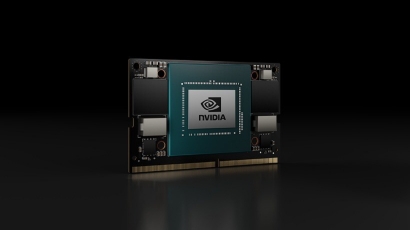

Jetson Orin NX Series

Jetson Orin NX modules deliver up to 100 TOPS of AI performance in the smallest Jetson form factor, with power configurable between 10W and 25W. This gives you up to 3X the performance of Jetson AGX Xavier and up to 5X the performance of Jetson Xavier NX. Jetson Orin NX is available in 16GB and 8GB versions.

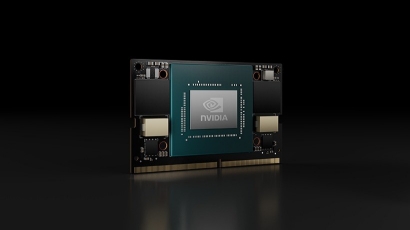

Jetson Orin Nano Series

Jetson Orin Nano series modules deliver up to 40 TOPS of AI performance in the smallest Jetson form-factor, with power options between 7W and 15W. This gives you up to 80X the performance of NVIDIA Jetson Nano. Jetson Orin Nano is available in 8GB and 4GB versions.

View Jetson Orin Technical Specifications

  Jetson AGX Orin series Jetson Orin NX series Jetson Orin Nano series
Jetson AGX Orin Developer Kit Jetson AGX Orin 64GB Jetson AGX Orin Industrial Jetson AGX Orin 32GB Jetson Orin NX 16GB Jetson Orin NX 8GB Jetson Orin Nano Developer Kit Jetson Orin Nano 8GB Jetson Orin Nano 4GB
AI Performance 275 TOPS 248 TOPS 200 TOPS 100 TOPS 70 TOPS 40 TOPS 20 TOPS
GPU 2048-core NVIDIA Ampere architecture GPU with 64 Tensor Cores 1792-core NVIDIA Ampere architecture GPU with 56 Tensor Cores 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores 512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores
GPU Max Frequency 1.3 GHz 1.2GHz 930MHz 918MHz 765MHz 625MHz
CPU 12-core Arm® Cortex®-A78AE v8.2 64-bit CPU
3MB L2 + 6MB L3 		8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU
2MB L2 + 4MB L3 		6-core Arm® Cortex®-A78AE v8.2 64-bit CPU
1.5MB L2 + 4MB L3 		6-core Arm® Cortex®-A78AE v8.2 64-bit CPU
1.5MB L2 + 4MB L3
CPU Max Frequency 2.2 GHz 2.0 GHz 2.2 GHz 2 GHz 1.5 GHz
DL Accelerator 2x NVDLA v2 1x NVDLA v2 -
DLA Max Frequency 1.6GHz 1.4GHz 614MHz -
Vision Accelerator 1x PVA v2 -
Safety Cluster Engine - - -
Memory 64GB 256-bit LPDDR5
204.8GB/s 		64GB 256-bit LPDDR5 (+ ECC)
204.8GB/s		 32GB 256-bit LPDDR5
204.8GB/s		 16GB 128-bit LPDDR5
102.4GB/s		 8GB 128-bit LPDDR5
102.4GB/s		 8GB 128-bit LPDDR5
68 GB/s 		4GB 64-bit LPDDR5
34 GB/s
Storage 64GB eMMC 5.1 -
(Supports external NVMe)		 -
(SD Card Slot & external NVMe via M.2 Key M)		 -
(Supports external NVMe)
Video Encode 2x 4K60 (H.265)
4x 4K30 (H.265)
8x 1080p60 (H.265)
16x 1080p30 (H.265) 		1x 4K60 (H.265)
3x 4K30 (H.265)
7x 1080p60 (H.265)
15x 1080p30 (H.265) 		1x 4K60 (H.265)
3x 4K30 (H.265)
6x 1080p60 (H.265)
12x 1080p30 (H.265)
1080p30 supported by 1-2 CPU cores
Video Decode 1x 8K30 (H.265)
3x 4K60 (H.265)
7x 4K30 (H.265)
11x 1080p60 (H.265)
22x 1080p30 (H.265) 		1x 8K30 (H.265)
3x 4K60 (H.265)
7x 4K30 (H.265)
11x 1080p60 (H.265)
23x 1080p30 (H.265) 		1x 8K30 (H.265)
2x 4K60 (H.265)
4x 4K30 (H.265)
9x 1080p60 (H.265)
18x 1080p30 (H.265) 		1x 4K60 (H.265)
2x 4K30 (H.265)
5x 1080p60 (H.265)
11x 1080p30 (H.265)
CSI Camera 16-lane MIPI CSI-2 connector
 Up to 6 cameras (16 via virtual channels)
16 lanes MIPI CSI-2
D-PHY 2.1 (up to 40Gbps) | C-PHY 2.0 (up to 164Gbps) 		Up to 4 cameras (8 via virtual channels***)
8 lanes MIPI CSI-2
D-PHY 2.1 (up to 20Gbps) 		2x MIPI CSI-2 22-pin Camera Connectors
 Up to 4 cameras (8 via virtual channels***)
8 lanes MIPI CSI-2
D-PHY 2.1 (up to 20Gbps)
PCIe* x16 PCIe slot supporting x8 PCIe Gen4
M.2 Key M slot with x4 PCIe Gen4
M.2 Key E slot with x1 PCIe Gen4 		Up to 2 x8 + 1 x4 + 2 x1
(PCIe Gen4, Root Port, & Endpoint) 		1 x4 + 3 x1
(PCIe Gen4, Root Port, & Endpoint) 		M.2 Key M slot with x4 PCIe Gen3
M.2 Key M slot with x2 PCIe Gen3
M.2 Key E slot 		1 x4 + 3 x1
(PCIe Gen3, Root Port, & Endpoint)
USB* USB Type-C connector: 2x USB 3.2 Gen2
USB Type-A connector: 2x USB 3.2 Gen2, 2x USB 3.2 Gen1
USB Micro-B connector: USB 2.0 		3x USB 3.2 Gen2 (10 Gbps)
4x USB 2.0 		3x USB 3.2 Gen2 (10 Gbps)
3x USB 2.0 		USB Type-A Connector: 4x USB 3.2 Gen2
USB Type-C Connector for UFP 		3x USB 3.2 Gen2 (10 Gbps)
3x USB 2.0
Networking* RJ45 connector with up to 10 GbE 1x GbE
1x 10GbE		 1x GbE 1xGbE Connector 1x GbE
Display 1x DisplayPort 1.4a (+MST) connector 1x 8K60 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1 1x 8K30 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1 1x DisplayPort 1.2 (+MST) connector 1x 4K30 multi-mode DP 1.2 (+MST)/eDP 1.4/HDMI 1.4**
Other I/O 40-pin header (UART, SPI, I2S, I2C, CAN, PWM, DMIC, GPIO)
12-pin automation header
10-pin audio panel header
10-pin JTAG header
4-pin fan header
2-pin RTC batter backup connector
microSD slot
DC power jack
Power, Force Recovery, and Reset buttons 		4x UART, 3x SPI, 4x I2S, 8x I2C, 2x CAN, PWM, DMIC & DSPK, GPIOs 3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIOs 40-Pin Expansion Header(UART, SPI, I2S, I2C, GPIO)
12-pin button header
4-pin fan header
microSD Slot
DC power jack
 3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIOs
Power 15W - 60W 15W - 75W 15W - 40W 10W - 25W 10W - 20W 7W - 15W 7W - 10W
Mechanical 110mm x 110mm x 71.65mm
(Height includes feet, carrier board, module, and thermal solution) 		100mm x 87mm
699-pin Molex Mirror Mezz Connector
Integrated Thermal Transfer Plate 		69.6mm x 45mm
260-pin SO-DIMM connector
100 mm x 79 mmx 21 mm
(Height includes feet, carrier board, module, and thermal solution) 		69.6mm x 45mm
260-pin SO-DIMM connector

† The Jetson Nano and Jetson Xavier NX modules included as part of the Jetson Nano developer kit and the Jetson Xavier NX developer kit have slots for using microSD cards instead of eMMC as system storage devices.
*USB 3.2, MGBE, and PCIe share UPHY Lanes. See the Product Design Guide for supported UPHY configurations.
**See the Jetson Orin Nano Series Data Sheet for more details on additional compatibility to DP 1.4a and HDMI 2.1
***Virtual Channels for Jetson Orin NX and Jetson Orin Nano are subject to change
Refer to the Software Features section of the latest NVIDIA Jetson Linux Developer Guide for a list of supported features.
